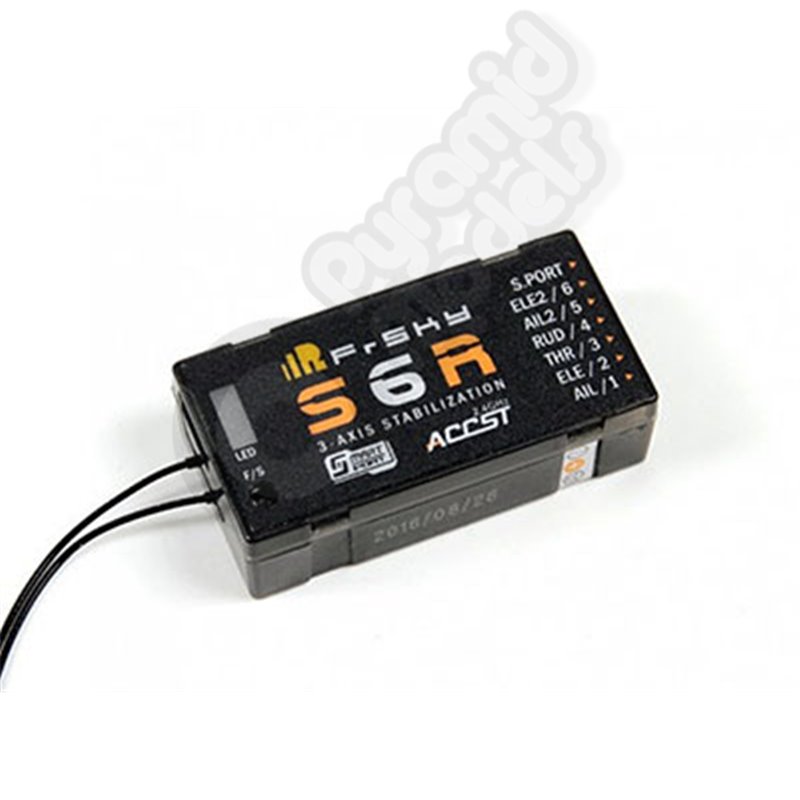

FrSky S6R 6 Channel Receiver w/ Built-In 3 Axis Gyro and Smart Port (EU) LBT Version

This 6 channel receiver from FrSky has a built-in 3 axis gyro and a 3 axis accelerometer sensor module. The S6R supports automatic leveling, hover and knife edge for conventional models and automatic leveling for Delta wings and V-tail. These model types can be enabled via S6R.Config or S6R.lua PC software but the S6R can be used as a standard 6 channel X series receiver as well.

he S6R has 6 conventional output channels, built-in battery voltage sensor and is "Smart Port" enabled allowing you to use the hub-less sensors as well as the older analog sensors.

With the built-in 3 axis gyro the S6R will compensate for outside forces on the aircraft and will enhance the stability of your model making it easier and smoother to fly. The gain can be adjusted in flight by assigning one of your transmitters sliding or rotary controls to the gain adjustment to increase or decrease the sensitivity.

he S6R-EU is only compatible with the following FrSky transmitters;
aranis X9D Plus - EU/X9E - EU/Horus X12S - EU/XJT - EU in D16 mode

Features:
â Built-in 3 axis gyro
â Built-in 3 axis accelerometer sensor module
â Built-in battery voltage sensor
â Smart port enabled
â Fail safe
â Small and lightweight (only 12.1g)
â Wide voltage range (4~10V)
â Firmware upgrade able

Specs:
Model Name:S6R (EU version)
No of Channels:6
Operating Voltage:4~10V
Operating Current:100mA@5V
Operating Range:Full range
Gyroscope Measurement Range:Â2000dps
Accelerometer Measurement Range:Â4g
Dimensions:47.4 x 23.8 x 14.7mm
Weight:12.1g
