LCD Digital Multimeter Tester With Test Leads

LCD Digital Multimeter Tester With Test Leads

A multimeter which can be used for circuit testing e.g. checking the amps being drawn in a circuit or being drawn by a motor, testing if there is a circuit through for fuses, lamps, etc., testing AC mains voltage, testing DC batteries, etc. and also for quick testing of transistors and diodes.

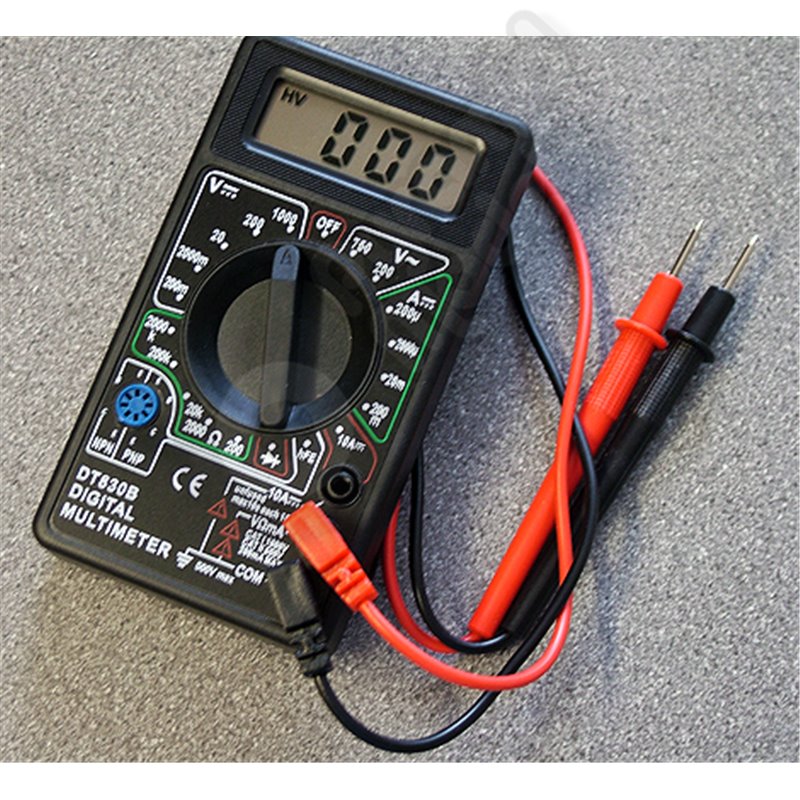

New LCD Digital Voltmeter Ammeter Ohm Multimeter DT830B

Battery NOT included

Features:

• 100% BRAND NEW!

• 3 ~ digits LCD display with max. reading 1999

• Dimension:126x70x24mm

• Weight: 170g

• Power: 20mW

• low power indicator (9V Battery is not included)

• Overload Protection

• The Digital Multimeter integrates Voltmeter, Ammeter and ohmmeter which is an ideal instrument for use in fields such as laboratory, workshop, DIYers and home applications.

Specifications:

• DC Voltage:

  Range	Resolution	Accuracy
  200mV	100uV	~ 0.5%~2D
  2000mV	1mV
  20V	10mV
  200V	100mV
  1000V	1V	~ 0.8%~2D

• AC Voltage:

  Range	Resolution	Accuracy
  200V	100mV	~ 1.2%~10D
  750V	1V

• DC Current:

  Range	Resolution	Accuracy
  200uA	100uA	~ 1.0%~2D
  2000uA	1A
  20mA	10A
  200mA	100A	~ 1.2%~2D
  10A	10mA	~ 2.0%~2D

• Resistance (ohm):

  Range	Resolution	Accuracy
  200ÃŽ	0.1ÃŽ	~ 0.8%~2D
  2000ÃŽ	1ÃŽ
  20KÃŽ	10ÃŽ
  200KÃŽ	100ÃŽ
  2000KÃŽ	1KÃŽ	~ 1.0%~2D

Package Content:

• 1 x DT830B digital multimeter

• 1 x Test leads

• 1 x User Manual

• 9V Battery is not included
