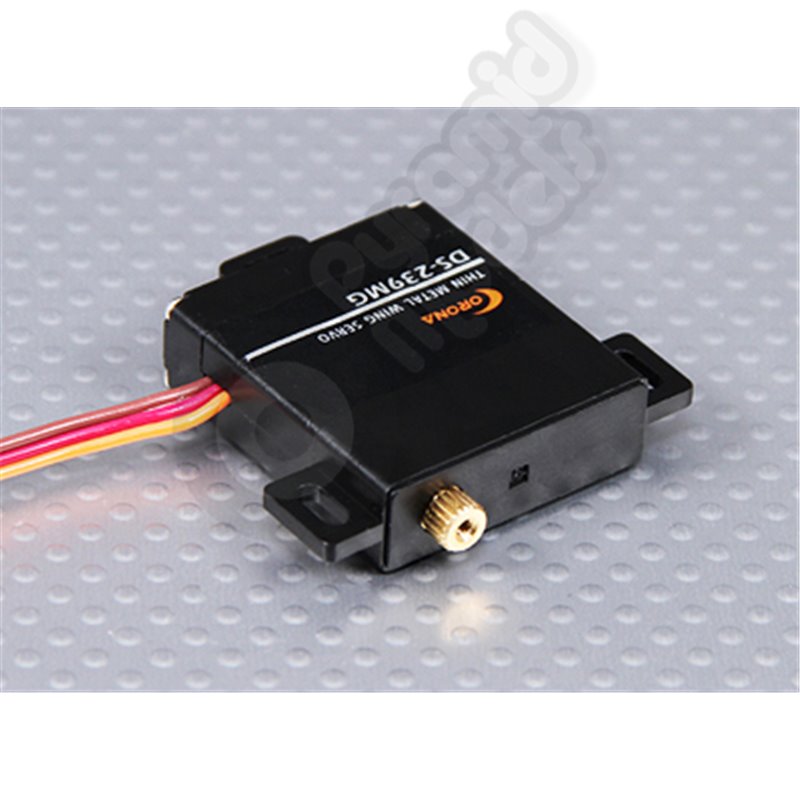

Corona DS-239MG Digital Slim Wing Servo (Metal Gear) 4.6kg / .15sec / 22g
AC622
New product
This product is no longer in stock
More info
Description
Corona DS-239MG Digital Slim Wing Servo (Metal Gear) 4.6kg / .15sec / 22g
Model:DS-239MG
Operating Voltage:4.8V / 6.0V
Operating Current:300mA / 400mA
Operating Speed:0.15sec.60~/ 0.14sec.60~
Stall Torque:4.0kg.cm / 4.6kg.cm
Size:30X10X34.5mm
Weight:22g
Dead Band:â3uSec
Operating Travel:40~/one side pulse traveling 400us
Potentiometer:3 slider/Direct Drive
Ball bearing:MR85x2
Gear:Metal
Connector wire:215mm
Operating Temperature Range:-20c+60c
Operating Voltage:4.8V / 6.0V
Operating Current:300mA / 400mA
Operating Speed:0.15sec.60~/ 0.14sec.60~
Stall Torque:4.0kg.cm / 4.6kg.cm
Size:30X10X34.5mm
Weight:22g
Dead Band:â3uSec
Operating Travel:40~/one side pulse traveling 400us
Potentiometer:3 slider/Direct Drive
Ball bearing:MR85x2
Gear:Metal
Connector wire:215mm
Operating Temperature Range:-20c+60c
