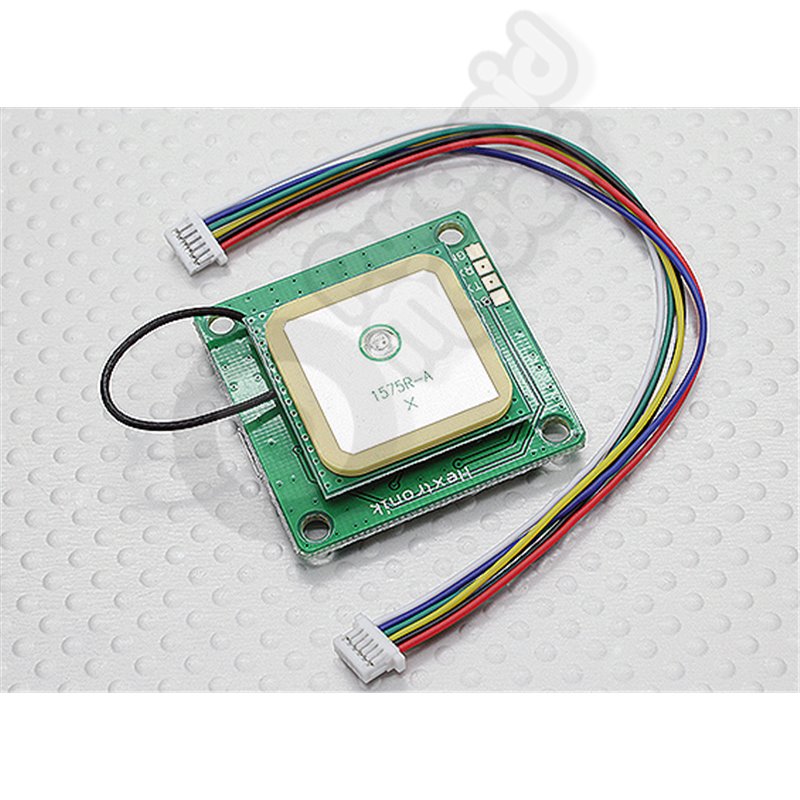

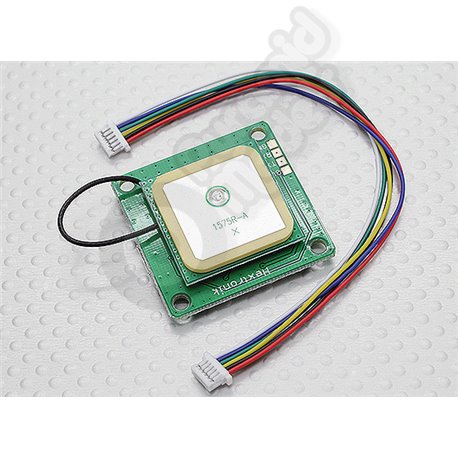

UBLOX LEA-6H GPS Module w/Built-in Antenna 2.5m Accuracy

Reference: AC583

Condition: New product

This product is no longer in stock

More info

UBLOX LEA-6H GPS Module w/Built-in Antenna 2.5m Accuracy

This GPS module integrates an LEA-6H GPS receiver with a 25x25x4mm ceramic patch antenna, UART serial interface, and USB. The high performance of the u-blox LEA-6H positioning engine enables navigation even in weak signal environments.

Recommended for multicopters in particular, where GPS accuracy is very important. It has active circuitry for the ceramic patch antenna and a backup battery for warm starts. These units will ship pre-configured for ArduPilot Mega use, and the configuration file is available in the Google repository.

This module features a USB V2.0 compatible serial port for power supply and data transfer.

Features:

Micro USB on board

ublox LEA-6H module

5Hz update rate

High precision 2.5m accuracy

25x25x4mm ceramic patch antenna

Enhanced powersave mode: lower power consumption based on intelligent power management

SuperSense Indoor GPS: -160 dBm Tracking Sensitivity

LNA and SAW filter

3V lithium backup battery

Low noise 3.3V regulator

Power and fix indicator LEDs

ArduPilot Mega compatible 6-pin JST connector

Exposed RX, TX, 5V and GND pad

Note: This module ships with a buad rate of 38400, 5Hz

Specs:

Power supply: 3.5~6.0V

Backup power: On-board lithium battery, 5mA

Antenna: 25x25mm patch antenna

Operating temp.: -20C ~ 60C

Dimensions: 37x37x9mm

Connector: SMT-pads for 10 pin header, Pitch: 2.54 mm

Serial ports: 1 UART @ 3 V levels 1 USB
