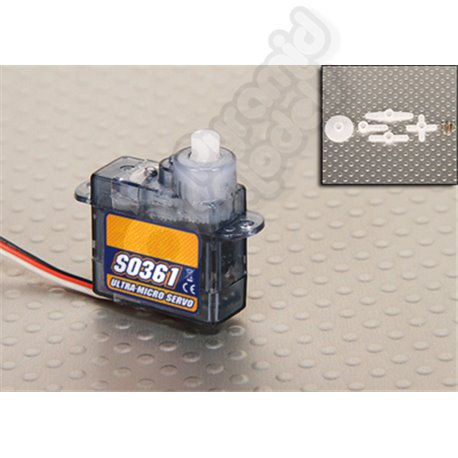

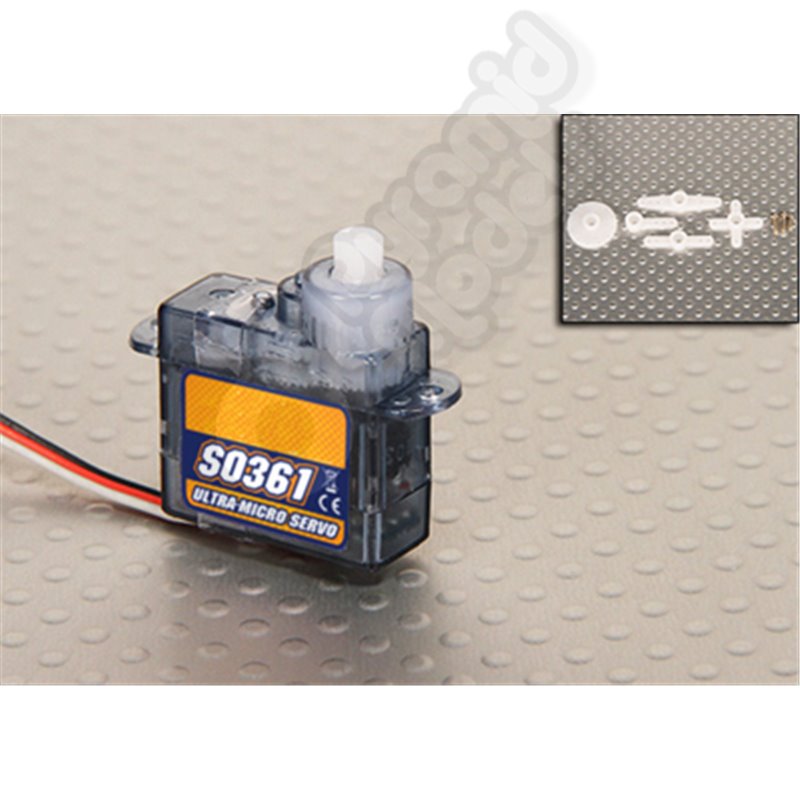

S0361 3.6g / .45kg / .12sec Micro Servo View larger

S0361 3.6g / .45kg / .12sec Micro Servo

AC433

New product

18 Items

£4,76

More info

S0361 3.6g / .45kg / .12sec Micro Servo

Small yet strong servo.Rebuild-able.

Specifications:
Operating Voltage: 4.8~6.0V
Operating Speed (4.8V): 0.12sec/60
Operating Speed (6.0V): 0.10sec/60
Stall Torque (4.8V): 0.30kg.cm
Stall Torque (6.0V): 0.45kg.cm
Idle current: 4mA

Running current: 120mA

Hold current: 350mA

Weight: 3.6g (.13oz)

Servo Plug - JR style with Futaba colour leads



These servos are well made and can be rebuilt.


The servos manual notes that you can also remove the base of the servo to further reduce the weight.



Servo comes with accessories, instructions
