Description

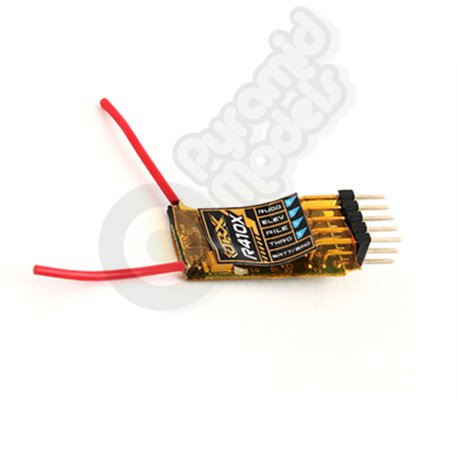

OrangeRx R410X DSMX Compatible 4Ch/6CH PWM/CPPM 2.4Ghz Receiver- DSM2 Compatible

Compatible with all DSM2/DSMX 2.4GHz Air transmitters and now featuring CPPM!

he OrangeRxR410X takes things to the next level by offering CPPM, true DSMX compatibility and utilizes dual antennae providing true signal reception diversity! Add to this programmable failsafe on binding, ultra fast brown-out recovery and wide voltage input range. The end result being an unbeatable value for the money aircraft receiver!

The all new CPPM functionality is an excellent feature for use with multi-rotor flight controllers such as the KK2.1, APM, MultiWii and others. This single line connection removes the weight and mess of additional wire leads for each individual channel. This is ideal for use on small frames where space is at a premium.

OrangeRxreceivers are built using original components, MCUs and with state of the art SMT automation to ensure a quality product each and every time. Every R410X is manufactured using impedance matched PCBs with exact tuning to provide signal stability and range that exceeds any of the previous generation ORXproducts. In fact our testing has shown that the R410X exceeds the range of other receivers in the same class.

All R410X OrangeRxreceivers are QC tested using our latest method that ensures range checking takes place as the receiver is programmed. Simply put, if the R410X cannot pass the range check it cannot be programmed, this ensures 100% of R410X are guaranteed to work flawlessly.

The R410X ushers in a new era of quality, reliability and performance for the OrangeRXline up.

Features:
Super lightweight 2.7g
Compatible with DSM2/DSMX 1024/2048 aircraft radio and module systems
CPPM output allowing for single line connection with compatible CPPM devices
Short 25mm antennae for mounting in almost any location
Wide input voltage: 3.7~9.6V
4 Channels PWM/6ch CPPM
Compact design
Diversity Antennas built in

Specification:
Channels:4 PWM (6 CPPM)
Input voltage:3.7~9.6V
Size:16x27x10mm
Weight:2.7g

Included:
OrangeRxR410X DSM2/DSMX 2.4GHz compatible receiver
Bind plug
