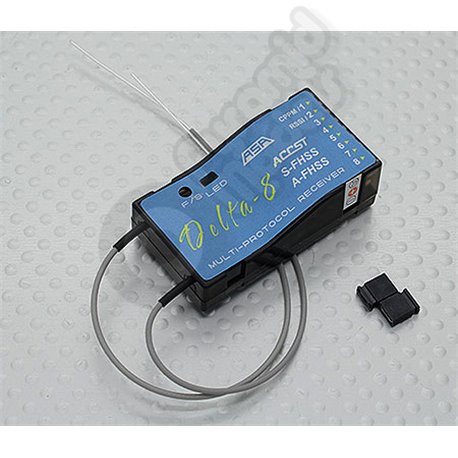

The FrSky Delta 8 receiver is a multi-brand 2.4GHz receiver that is compatible with FrSky D8/V8, Futaba S-FHSS/FHSS and Hitec A-FHSS. It also features CPPM and RSSI outputs.
This unit works with the following systems:
FrSky D8
FrSky V8
Futaba S-FHSS
Futaba FHSS
Hitec 2.4GHz A-FHSS
Plus you can put the receiver into PPM and RSSI output mode for flybarless helicopters, multi-copter and FPV users.
When binding, the Delta 8 will search and find which system is active and then bind to that transmitter - all automatically. Alternatively you can use a set of jumpers to force the receiver to only look for a particular brand.
Receiver Specifications:
Operating Voltage Range:3.0V-16V (HV Version)
Operating Current:30mA
Specified Range:1.5km-2.5km
Resolution:3072
Latency:22ms
Number of Channels:8CH
Dimensions:49mm~24.5mm~15mm
Weight:9.3g
to Bind This Receiver to TARANIS - (can take 1 minute 40 seconds to bind)
