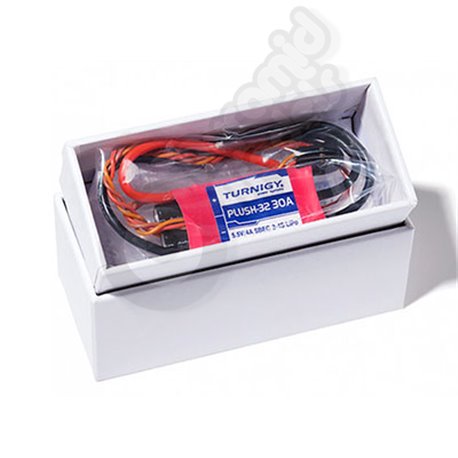

A new generation of Turnigy ESCs. The Turnigy Plush-32 ESC comes with a new 32-bit ARM controller to make it quicker and more responsive to your every input. As you would expect the Turnigy Plush-32 series comes with the same solid, high-quality we have seen with the Turnigy Plush ESCs.
Donât forget to include a Plush-32 programming card to make life easy. No more listing to the beeps and guessing when to move your throttle the programming card changes settings with the press of a button and easy to read LEDâs lets you know exactly how your ESC is programmed. The Plush range of ESC's are not supplied with connectors so that you can choose the type you prefer to use.
Features:
â 32-bit ARM MCU, small size, lightweight and fast response speed
â High resolution, smooth and sensitive throttle linearity, throttle signal loss protection is achieved
â Compared with other conventional ESCs, synchronous rectification, regenerative braking, and more energy saving
â Automatically detect an input signal
â Good compatibility with motors, suitable for most motors on the market
â Regular throttle range is 900us~2400us
â Max RPM: 300,000 (2poles), 100,000 (6poles), 50,000 (12poles)
â Customized settings can be done with the program card (brake/non-brake)
â 60A and above supports adjustable temperature protection
â Supports setting the direction of motor rotation by programming card
Specs:
Amps: 30A
Cells: 2~4S
Voltage: 8.4~16.8V
BEC: 5.5V / 4.0A
BEC type: SBEC
Timing: Auto
Cutoff Voltage: 3.2V
Frequency: 48MHz
Weight: 24.5g
Size: 36x23.5x10mm
Sensored/Sensorless: Sensorless
