Switch Plug For Receiver Battery With Charging Function
AC895
New product
4 Items
Warning: Last items in stock!
More info
Switch Plug For Receiver Battery With Charging Function
This item allows to to simply turn on and off the model battery supply without the usual mechanical switch used for many years
By inserting the plug with the REMOVE BEFORE FLIGHT banner, will disconnect the battery from the receiver or for what ever it is being used including the use of a battery to supply a petrol engine, making it a suitable switch for safely turning on and off the electronic ignition - obviously, you would require 2 of these if you want to use one for the radio and another for the ignition.
How to install on your aircraft:
1, Dill a hole Diameter 10.5mm on the aircraft to install the input plug
2,Using the supplied screws, insert the wires and in a suitable position screw to the fuselage surface

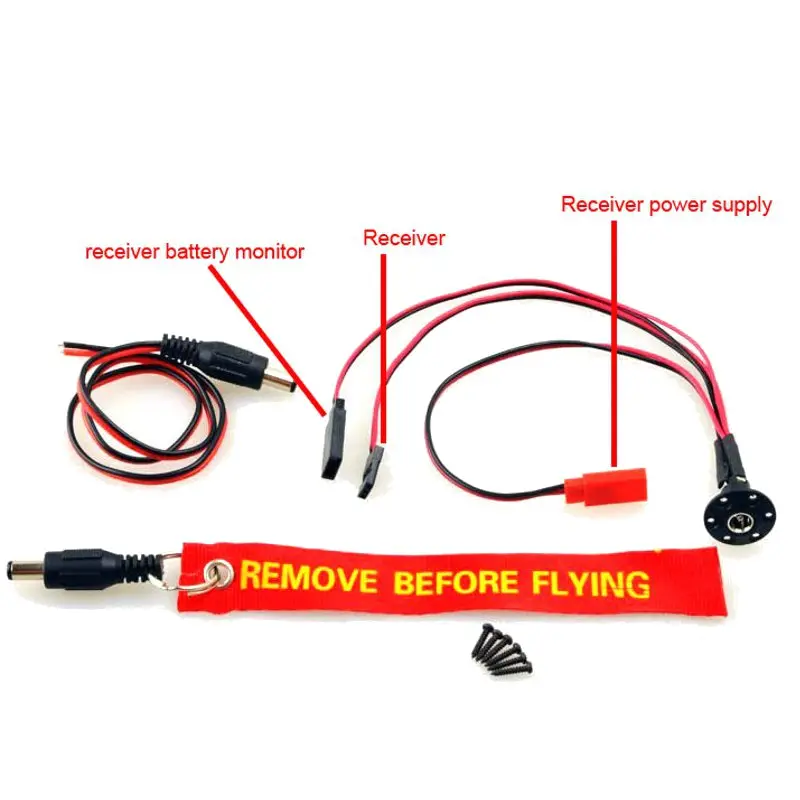

3, With this installed, simply connect all the wires internally to battery etc as show in the top picture, when the keyring
banner is removed the model is live and the receiver battery is turned on
4, Inserting the key ring plug as shown below, will disable the power from the receiver or anything
connected to the internal wiring
5, You can also use this input socket for directly charging a receiver Ni-Cad placed internally from the
outside without having to remove wings etc.
Description:
The product can be used to control small current circuit closing (such as receiver, ignition, flight control board, etc) and opening, not for more than 10A current circuit (such as electric airplane).
It also can be used to charge for receiver battery and ignition battery.
It also can be used with voltage displayer (such as BW4606) to display the voltage of receiver battery and igniter battery.
Features:
- Working Current: 10A
- Working Life: 30000 times
- Simulated appearance, very convenient to use, only one more hole needs to be drilled.
- Using 60 cores wire, super low resistance.
- Capacity display sort added to save the space for receiver port.
Package Included:
1x Charger plug
