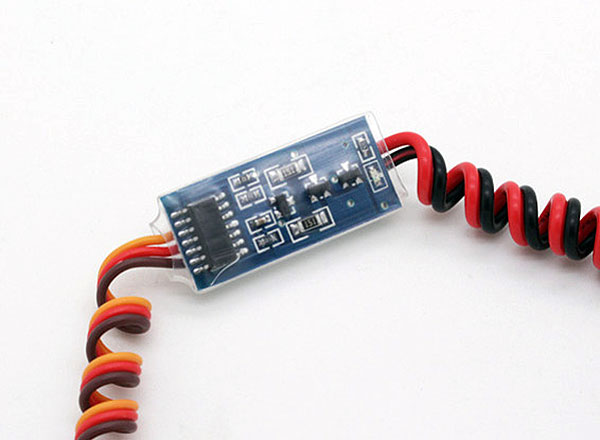

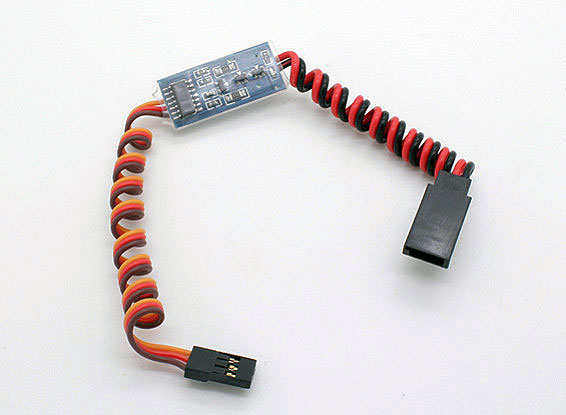

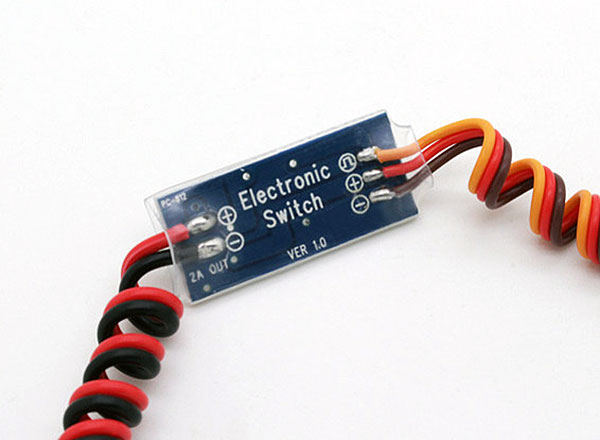

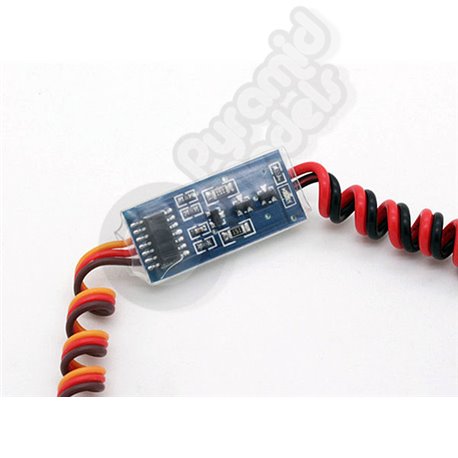

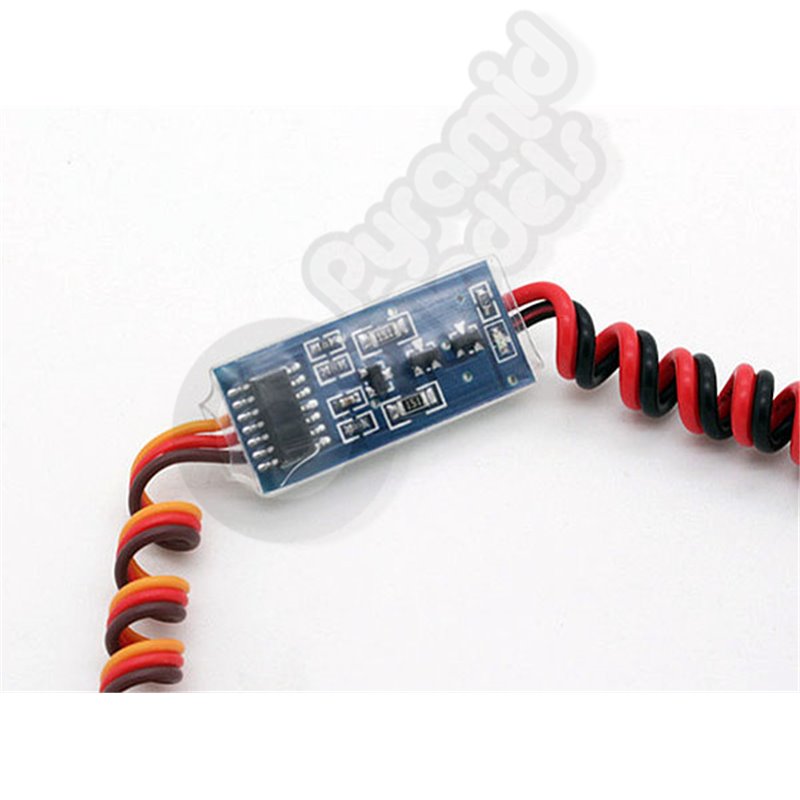

Dr. Mad Thrust Electronic On/Off Switch
AC893
New product
3 Items
Warning: Last items in stock!
More info
This small lightweight electronic switch is extremely handy for switching on and off auxiliary functions on all sorts of models. Plug the single lead into one of your spare channels for switching lights, bomb dropping, smoke systems, canopy operation and other low current applications.
Please note: For this switch to work correctly you will need to set the related channel travel to + - 100%.
Specs:
Input Voltage: 4.8~7.4v
Output Voltage: 4.8~7.4v
Maximum Current: 2amps
Length: 30mm
Width: 13mm
Height: 3mm
Weight: 7g
Input Cable: 21cm (JR type plug)
Output Cable: 20cm (JR type socket)
YOU NEED TO BE ABLE TO PROGRAM THE TRAVEL ON YOUR TRANSMITTER TO USE THESE!
Please note: For this switch to work correctly you will need to set the related channel travel to about 90% of its full travel. These switch on at about 50% (Mid point / Neutral position / 1.65ms) and off again at about 90% - 100% (1.95ms).
If you cannot or not know how to program your transmitter to do this, please do not buy these, it will never work for you.
Please note: For this switch to work correctly you will need to set the related channel travel to + - 100%.
Specs:
Input Voltage: 4.8~7.4v
Output Voltage: 4.8~7.4v
Maximum Current: 2amps
Length: 30mm
Width: 13mm
Height: 3mm
Weight: 7g
Input Cable: 21cm (JR type plug)
Output Cable: 20cm (JR type socket)
