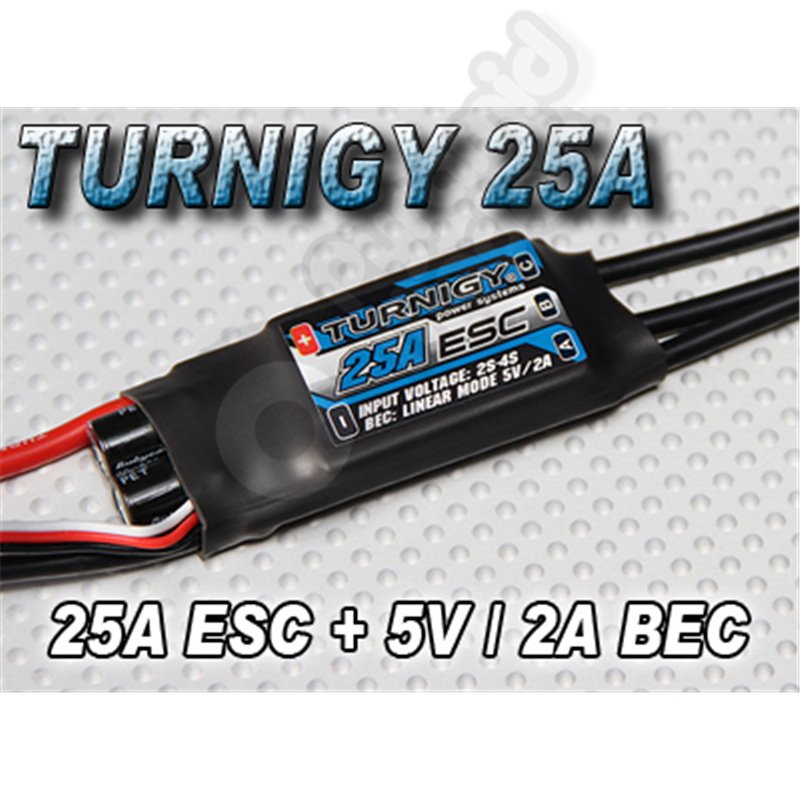

Turnigy TY-P1 25Amp HEXFET Brushless Speed Controller

The Turnigy TY-P1 25Amp ESC is a outstanding performer. Using quality IR HEXFET Power MOSFETs developed in the USA, this ESC is cable of handling current draw in excess of 40 amps. However this in house designed ESC was developed and produced by an engineering team with one goal in mind, quality and reliability. Rather than over rate the ESC and push it to the limit with a larger heat-sink, as many companies do, they wanted to design a Speed controller for those looking for a bullet proof solution. With the implementation of SMT technology rather than hand soldering to produce consistent quality and reliability each and every time. The TY-P1 25A ESC also features independent voltage regulators (One for the BEC and one for the MCU) this ensures the MCU will remain powered in the event of a high momentary amp draw from the BEC circuit and vise versa. An XT-60 battery connector and 3.5mm bullet connectors have been pre-soldered for convenience.

Specs:
Cont. Current: 25A
Burst Current: 50A
BEC: 5volts / 2amps
Weight: 42.5 Gram (including wires and plugs)
Battery Plug: XT-60
Motor Plug: 3.5mm Bullet Connector

Programming Options:
Brake (OFF/ON).
Cut-off Type (Soft-cut/Cut-off).
Cut-off Voltage (Low / Middle / High ).
Start Mode (Normal / Soft / Very Soft ).
iming Mode (Low / Middle / High).
Cell (Auto, 2S, 3s, 4S).

Note: Programming can be done via the Optional programming card. See related items below.

This ESC requires the user to set the throttle range on installation. Please download the manual for further instructions.

HEXFET is a registered trade mark of International Rectifier Group California, USA.
