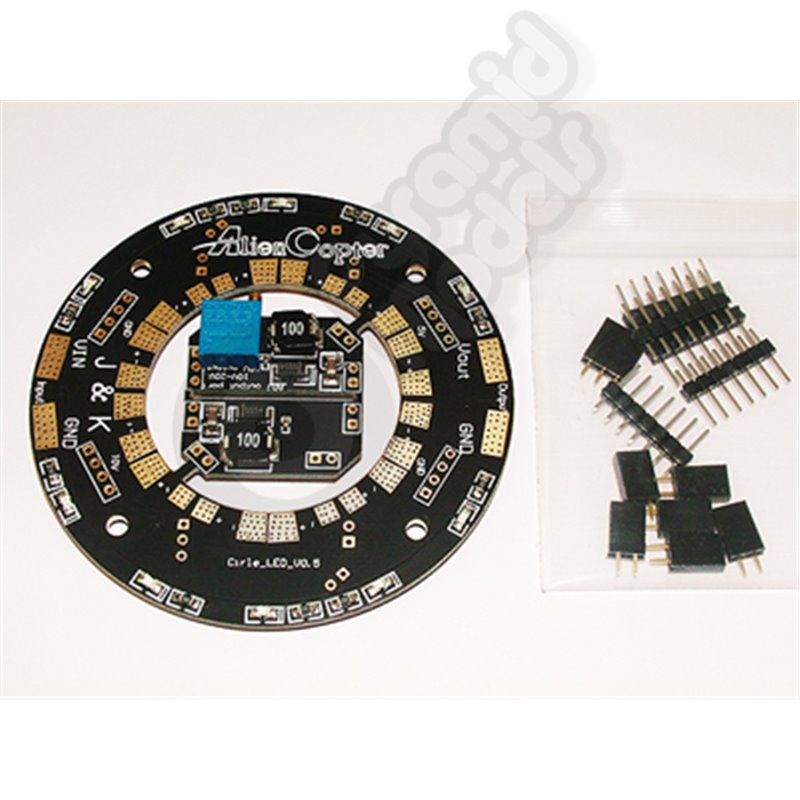

J&K Universal 12-way 100A Multi-rotor Power Distribution Hub W/ LEDs & Dual BECs

This is a power distribution hub specially designed for multi-rotor speed controller connection.

It makes the wiring of your multi-rotor system neater, easier, secure.
- With LED lights.
- 2 sets of soldering points for main power supply
- Dual BEC output, one way is 10-20V adjustable, the other is 5V fixed.
Suit for multicopters up to 800mm in rotor width and working current no higher than 100A.
Installation hints:
wo BEC modules need to be solder to main board by cuxtomer using Pins and headers as supplied, so some soldering skill is needed.

J&K Universal 12-way 100A Multi-rotor Power Distribution Hub W/ LEDs & Dual BECs

Max ESC number: 12
Outer diameter: 77mm
Inner diameter: 40mm
Weight: 18g
Max voltage supported: 6S (the voltage regulating chips for LEDs will be burned when exceeding 6S for power input)
BEC output: 5V fixed, 3A; the other a 10-20V adjustable, max 36W ( 3A @12V)

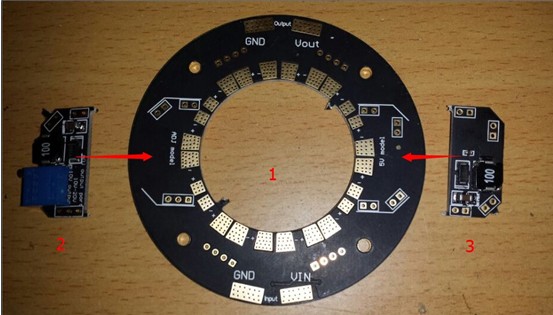

1 - Main PCB
2 - 10-20V adjustable BEC module
3 - 5V output BEC module

BEC modules installation.
BEC modules to be soldered with the pins provided.

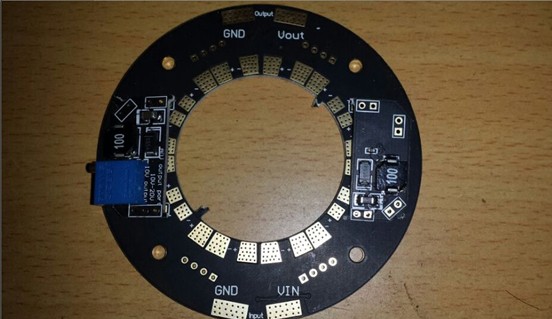

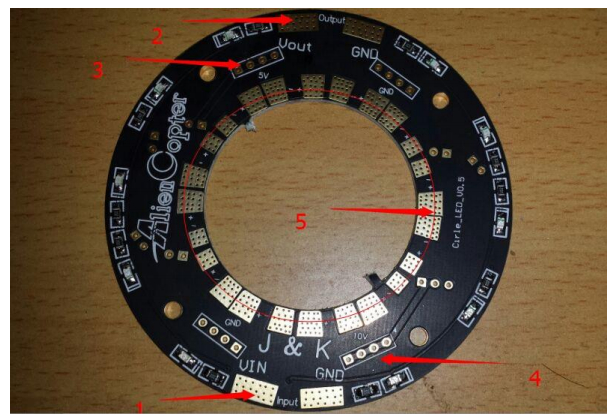

Positions 1 & 2 are for main power input (VINVOUT for positive, GND for negative)
Pins arrow 3 pointed are 5V BEC output ( the side marked with 5V for positive, and GND for negative, support up to 4-way)
Pins arrow 4 pointed are 10-20V BEC output ( the side marked with 10V for positive, and GND for negative, support up to 4-way)
Soldering points arrow 5 pointed are for power output to ESCs or other devices, polarity is marked near the soldering points.

* LEDs on main PCB will only light up once the 5V BEC module is installed.
