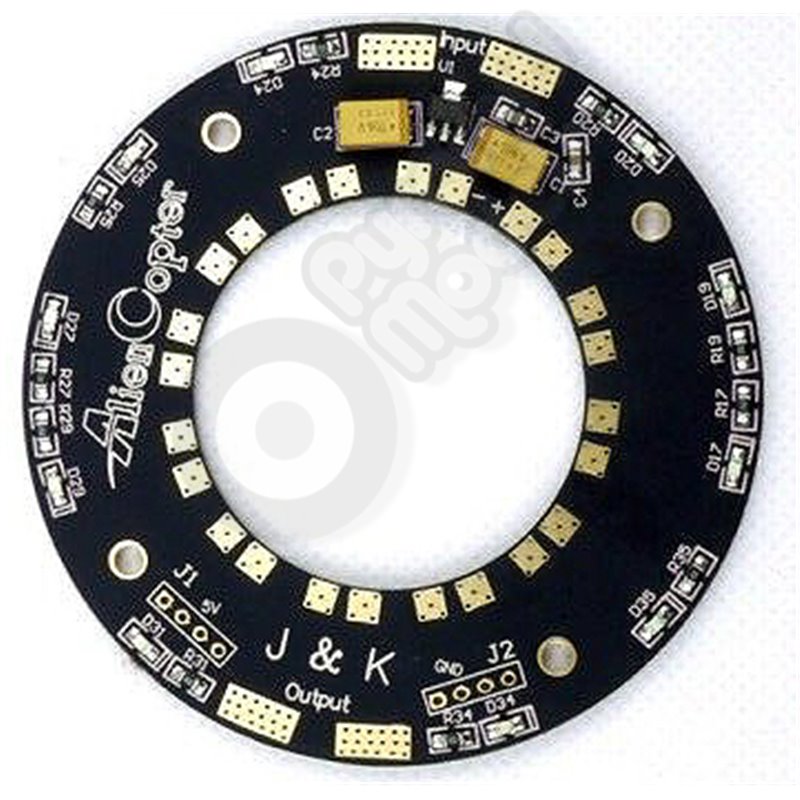

J&K Universal 12-way 100A Multi-rotor Power Distribution Hub W/ LEDs

This is a power distribution hub specially designed for multi-rotor speed controller connection.
It makes the wiring of your multi-rotor system neater, nicer, and more secure.

- comes With LED lights on board.
- 2 sets soldering points for main power supply
Suitable for multicopters up to 800mm in rotor spacing and working current no higher than 100A.

PLEASE NOTE -These items are polarised, and by that we mean, should you mistakenly connect the
+ and - of a battery supply in reverse (even momentarily)DOUBLE CHECKbefore connecting your battery supply
or it will cause serious damage to the boards circuitry andwe will not cover any claim for a refund or replacement
YOU BREAK IT _ YOU KEEP IT ! -if you are not happy with this , please do not purchase

Installation method:
1. Solder the power input wires of ESCs to the hub, suggested inner circle for "+", and outer circle for "-".
2. Isolate the hub with tape or shrinking tube, or use double side tape to fix it to the main frame of your multi-rotor aircraft.

Spec.

Overall diameter - 75mm
Inner hole - 39mm
Mounting Holes - 45mm between centres
