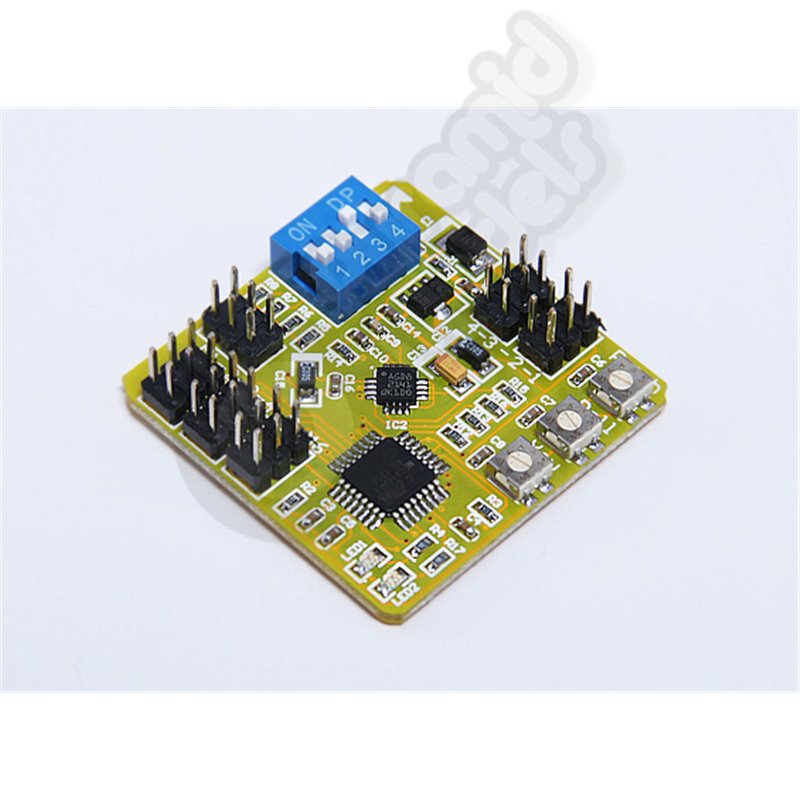

Controlled by an Atmel Mega168PA 8-Bit RISC based micro controller and utilizing a single 3-axis MEMS gyro the Hobbyking i86 Multi-Rotor Control Board is capable of 8 Multi-rotor craft types and 2 flight modes without the need to flash the micro controller. The simple dip switch systems allows for quick and easy selection of your desired Multi-rotor configuration and flight mode.

Light weight and compact the i86 can fit in the smallest of craft and includes a small piece of double sided tape to install.

The Hobbyking i86 Multi-Rotor Control Board supports:Aero (fixed wing)
Dual copter
ri copter
Quad copter X
Quad copter +
Hex copter
H6 copter
Y6 copter
All of the above modes can be set in "Normal" mode or "Sports" mode (default normal)

Specs:
Input Voltage: 4v to 6v
Input signal: 50hz standard PPM
PWM Frequency: 400hz forESC, 50hz for servos
Gyro scale: +/- 500dps, ODR: 800hz
Operating temp: -40 C to 85 C
Size: 40mm x 40mm
Weight: 8g

PLEASE READ CAREFULLY

These Boards are only suitable for flyers with previous experience or are technically minded . . . ! !

You will be required to do a certain amount of setting up and configuration to enable these boards to function and operate correctly,

you may need to re-flash the board with other firmware than that supplied to allow it to work with your R/C gear or make otheradjustments for this board to operate correctly.

Should you not feel confident or have no experience of these types of boards, we first suggest you ask someone who may help you locally, anddo some on line research to establish if these boards are boyond your capabilites - Again these board areNOTplug and play -

Please do not purchase if you are not happy with the above statement !

TERMS OF SALE & DISCLAIMER -

By purchasing this item, you are in aggreement that Pyramid Models or the owners, cannot give any support, will not be heldresponsible for any crash damage to this Circuit Board or other connected R/C gear, however caused or even a collision or crash byinexperience pilots, and under no circumstances will a claim for exchange or refund be accepted once used.

This board is an open circuit and should be treated with respect, all Boards are thouroughly checked and tested before dispatch andincorrect wiring or setting up may result in your aircraft becoming unstable and a crashoccurring, this may cause serious damage to the controller board,yourself, nearby objects, and any other radio gear connected to this board.
