NEW - KK2.0 Multi-rotor LCD Flight Control Board View larger

NEW - KK2.0 Multi-rotor LCD Flight Control Board

AC282

New product

This product is no longer in stock

£36,99

More info

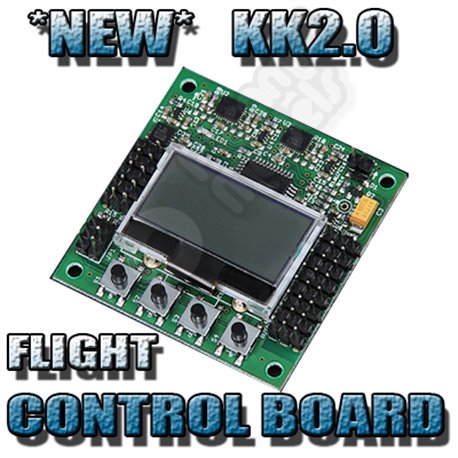

NEW - KK2.0 Multi-rotor LCD Flight Control Board

CLICK HERE For latest version

PLEASE NOTE - Pyramid Models now update all boards to the latest firmware before dispatch - currently V1.6,we also embed PYRAMID MODELS within the code to stop FRAUDULANT CLAIMS of return items from other vendors !

PLEASE BE AWARE - we supply full instructions for the boards use andbecausewe flash the board and test fully before dispatch we also know it is fully working, any claims of the LCD Display not working after delivery, a replacement will not beentertainedas this is easily damaged if you connect any of the motor leads inreverse YOU BREAK IT -, YOU KEEP IT - If you are not happy with this statement, then please buyelsewhere.

All boards currently produced by the manufacturers are flashed with V1.2 - V1.6 has extra features such as 2 axis Gimble Control and Auto Levelling which isjustawesome!




Designed by the Grand father of the KK revolution, Rolf R Bakke, the KK2.0 is the evolution of the first generation KK flight control boards. The KK2.0 was engineered from the ground up to bring multi-rotor flight to everyone, not just the experts. The LCD screen and built in software makes install and setup easier than ever. A host of multi-rotor craft types are pre-installed. simply select your craft type, check motor layout/propeller direction, calibrate your ESCs and radio and your ready to go! all of which is done with easy to follow on screen prompts!


The original KK gyro system has been updated to an incredibly sensitive dual chip 3 Axis gyro and single chip 3 axis accelerometer system making this the most stable KK board ever and allowing for the addition of an Auto-level function. At the heart of the KK2.0 is an Atmel Mega324PA 8-bit AVR RISC-based microcontroller with 32k of memory. An additional 2 motor output channels have been added to the KK2.0 allowing for a total of 8 motors to be controlled (Octocopter). A handy Piezo buzzer is also included with the board for audio warning when activating and deactivating the board.

If your new to multi-rotor flight or have been unsure about how to setup a KK board then the KK2.0 was built for you. The 6 Pin USBasp AVR Programming interface ensures future software updates will be quick and easy.









Specs.
tSize: 50.5mm x 50.5mm x 12mm
tWeight: 21 gram (Inc Piezo buzzer)
tIC: Atmega324 PA
tGyro: InvenSense Inc.
tAccelerometer: Anologue Devices Inc.
tAuto-level: Yes
tInput Voltage: 4.8-6.0V
tAVR interface: standard 6 pin.
tSignal from Receiver: 1520us (5 channels)
tSignal to ESC: 1520us

Pre-installed firmware.
tDualcopter
ricopter
tY6
tQuadcopter +
tQuadcopter X
tHexcopter +
tHexcopter X
tOctocopter +
tOctocopter X
tX8 +
tX8 X
tH8
tH6
tV8
tV6
tAero 1S Aileron
tAero 2S Aileron
tFlying Wing
tSinglecopter 2M 2S
tSinglecopter 1M 4S
t(Custom Mix via the "Mixer Editor" option)

he Mixer Editor allows you to adjust where and how much signal the motors receive from stick input and sensors. This allows you to create any configuration possible with up to 8 motors or servos.


tWhats is a Multi-Rotor Control board you ask?


he KK2.0 Multi-Rotor controller is a flight control board for multi-rotor Aircraft (Tricopters, Quadcopters, Hexcopters etc). Its purpose is to stabilize the aircraft during flight. To do this it takes the signal from the three on board gyros (roll, pitch and yaw) then passes the signal to the Atmega324PA IC. The Atmega324PA IC unit then processes these signals according the users selected firmware and passes control signals to the installed Electronic Speed Controllers (ESCs). These signals instruct the ESCs to make fine adjustments to the motors rotational speed which in turn stabilizes your multi-rotor craft.


The KK2.0 Multi-Rotor control board also uses signals from your radio systems receiver (Rx) and passes these signals to the Atmega324PA IC via the ail, ele, thr and rud inputs. Once this information has been processed the IC will send varying signals to the ESCs which in turn adjust the rotational speed of each motor to induce controlled flight (up, down, backwards, forwards, left, right, yaw).

NOW YOU CAN SEE AGAIN !

We now have in stock Replacement LCD screens for those unwelcome heavy landings and accidents


Replacement screen Click Here


PLEASE READ CAREFULLY
These Boards are only suitable for flyers with previous experience or are technically minded . . . ! !
You will be required to do a certain amount of setting up and configuration to enable these boards to function and operate correctly,
you may need to re-flash the board with other firmware than that supplied to allow it to work with your R/C gear or make other adjustments for this board to operate correctly.

Should you not feel confident or have no experience of these types of boards, we first suggest you ask someone who may help you locally, and do some on line research to establish if these boards arebeyondyourcapabilities- Again theseboardare NOTplug and play -
Please do not purchase if you are not happy with the above statement !

TERMS OF SALE & DISCLAIMER -

ttBy purchasing this item, you are inagreementthat Pyramid Models or the owners, cannot give any support, will not be heldresponsible for any crash damage to this Circuit Board or other connected R/C gear, however caused or even a collision or crash by inexperience pilots, and under no circumstances will a claim for exchange or refund be accepted once used.

This board is an open circuit and should be treated with respect, all Boards arethoroughlychecked and tested before dispatch andincorrect wiring or setting up may result in your aircraft becoming unstable and a crash occurring, this may cause serious damage to the controller board, yourself, nearby objects, and any other radio gear connected to this board.

KK2.0 Written User Manual & Video Tutorials provided with every board

Video 1 - KK2.0 Walk through
Video 2 - KK2.0 Quick Tuning Guide
