Durafly MK24 Spitfire 5 blade Upgrade Kit

Reference: AC830

Condition: New product

This product is no longer in stock

More info

Durafly MK24 Spitfire - 5 Blade Upgrade Kit

This kit of parts will allow you to fully upgrade/ convert to the scale version of a 5 blade MK24 Spitfire made by Durafly

Apart from the motor, all of these parts can be purchased individually from our store, links to these are shown in related items at bottom of page, should you want to see the full spec..

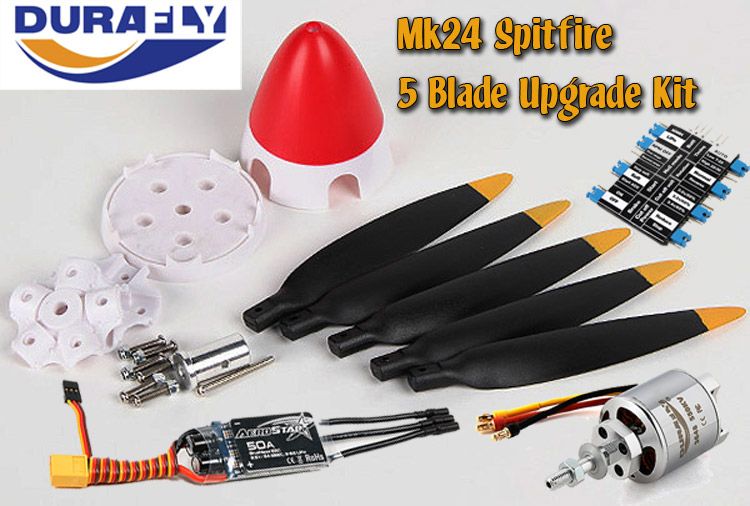

Parts included

550KV Motor ( as recomended by Durafly)

Spinner, prop mounting plates and hardware

5 Blades

50 amp ESC

ESC programming card

The motor is a Durafly 3648 550KV motor, the spec is shown below

Supplied with prop shaft designed specifically for the spinner of Mk-24 5-blade set-up. Suitable for 3 and 4S operation. X-mount required.

Specs:
Model: Durafly~ 3648 550Kv
Kv: 550Kv
Voltage: 11.1~14.8v (3~4s LiPoly)
Max current: 48A
Max Power: 720W
Shaft: M6 (Bolt on adaptor w/prop fixing)
ESC: 35~60A
Connectors: 3.5mm Bullet
Bolt holes: 16 x 19mm
Bolt thread: M2.5
Dimensions: 37 x 51mm
Weight: 209g (inc Prop Adapter, wires and connectors)
Suggested Prop: Durafly~ 280mm dia 5 blade recommended
