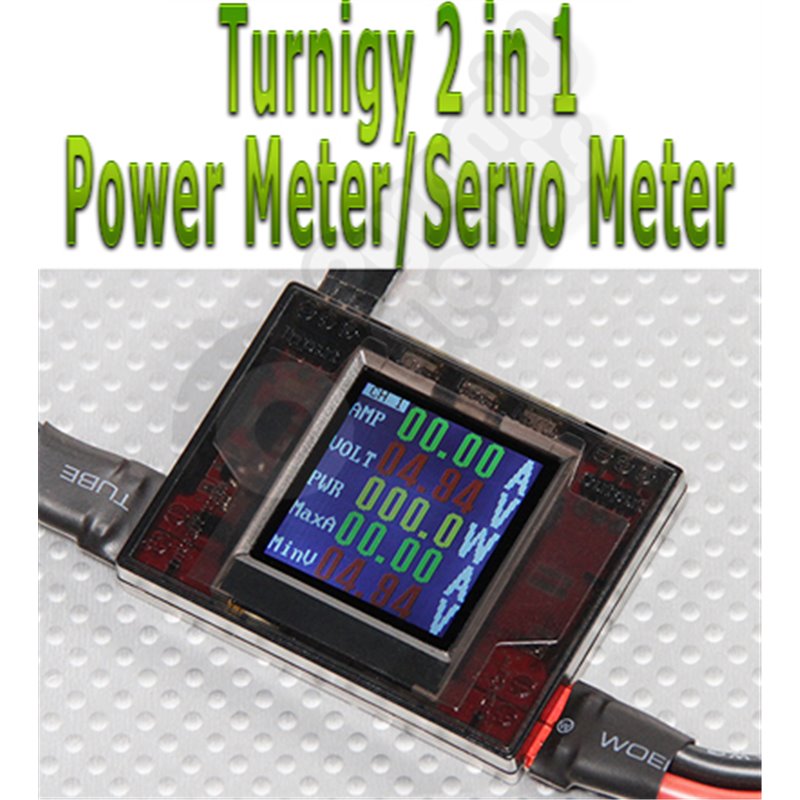

Turnigy 2 in 1 Power Meter/Servo Meter 1.5 TFT

The Turnigy 2 in 1 Power Meter/Servo Meter is a great tool to have in your flight box. It can quickly and easily measure voltage, amperage and wattage of just about any R/C electronic component.

This device has two channels:
Channel 1 is designed for use with servos and can handle up to 8.4V/10A. It features JR style plug connections allowing you to easily connect your servos directly to the meter. This is very usefulfor determining if yourESC's BEC can handle your model's servos.

Channel 2 features 12AWG input/output leads and supports up to 60V/100A. This is perfect for checking you power system in anything from micro to large sizeelectric models!

All of the data is displayed on a large, easy to read 1.5" TFT backlitcolor display making it visible in just about any lighting condition. This meter even features a data graph display for both channel 1 and 2.

Features:
Accurate voltage/amperage/wattage measurement
1.5" TFT backlit color display
2 channel operation (CH1 8.4V/10A max, CH2 60V/100A max)
Perfect for testing current used by servos and power systems
Adjustable amperage/voltage alarm

Specs:
Servo meter input CH1:8.4V/10A max
Power meter input CH2:60V/100A max
Display:1.5" TFT
Dimensions:58x45x9mm
Weight:41g

*Note:User manual available for download locatedHERE
