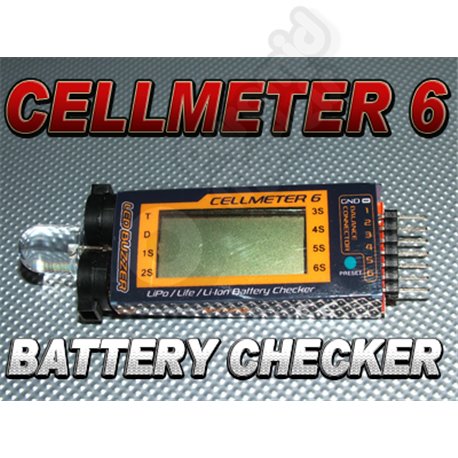

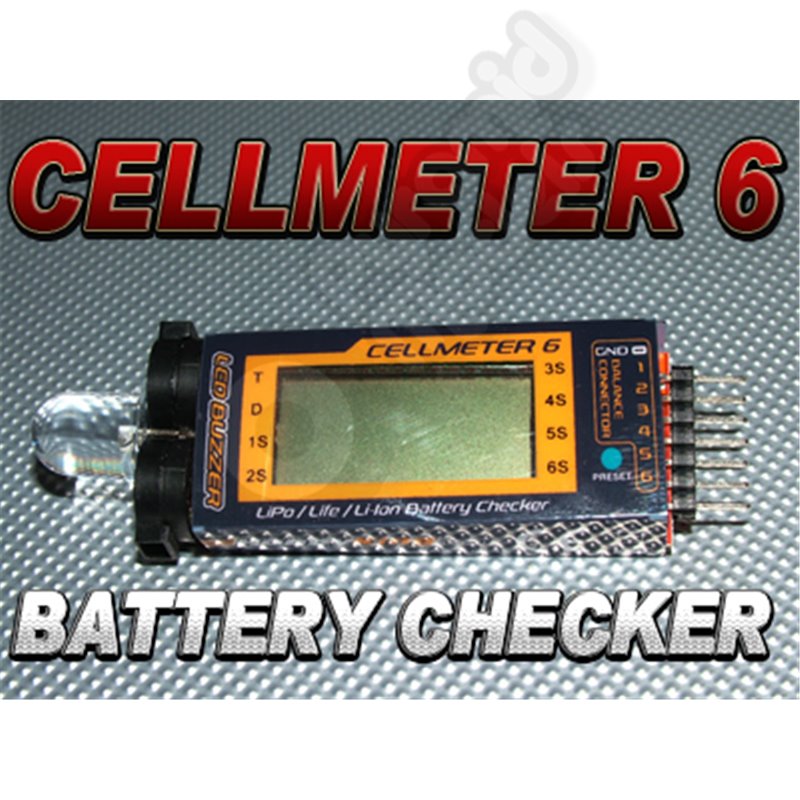

Cellmeter-6 Lipo/Life/Li-ion Cell Checker & Alarm
AC303
New product
This product is no longer in stock
More info
The Cellmeter 6 can be used as a stand alone overal voltage / individual cell checker for 1s - 6s Lipo/LiFe/Li-Ion packs, or it can also be easily mounted in to your model to act as both a battery checker and a low voltage alarm.....and what an effective alarm it is too, with both a large bright LED and not one, but TWO Audible Alarms to let you know when your battery is low, the Cellmeter 6 is a great device to prevent over discharge of your precious batteries!
We recommend all aircraft should have one, as it will save you a lot of money in replacing damaged batteries due to over discharging!
Below shows the readout from a partially used /discharged 3s 2200mah LiPo Battery connected to the CellMeter 6
| D = Difference between highest and lowest individual cell voltage |
 |
| 1S = Voltage of 1st cell |
 |
| 2S = Voltage of 2nd cell |
 |
Features:
Programmable Cell Voltage Alarm range 3v~4v
Displays total Voltage/Individual Cell Voltage & Highest difference between cells
LCD Screen
Reverse Polarity protection
Large Bright LED Warning light for low voltage
Ultra Loud twin piezo low voltage alarm
Specs:
Battery Range: 1s~6s Lipo/Life/Li-ion
Total Voltage Display Range: 1.5v~29.94v
Individual Cell Display Range: 1.5v~4.99v
Voltage Display Resolution: 0.001v
Voltage Detection Accuracy: 0.005v
Power Consumption: 8mA
Dimensions: 80mmx25mmx12mm
Weight: 12g
